1. Product Description
1.1 Category:Flame retardant paste
1.2 Features:Soft hand feel with excellent flame retardant performance
1.3 Applicable fabrics:Especially designed for flame retardant textiles
1.4 Storage:Keep sealed and store in a cool and ventilated place between 5-40℃ of temperature
1.5 Eco-friendly:Compliant with OEKO-TEX and other relevant standards

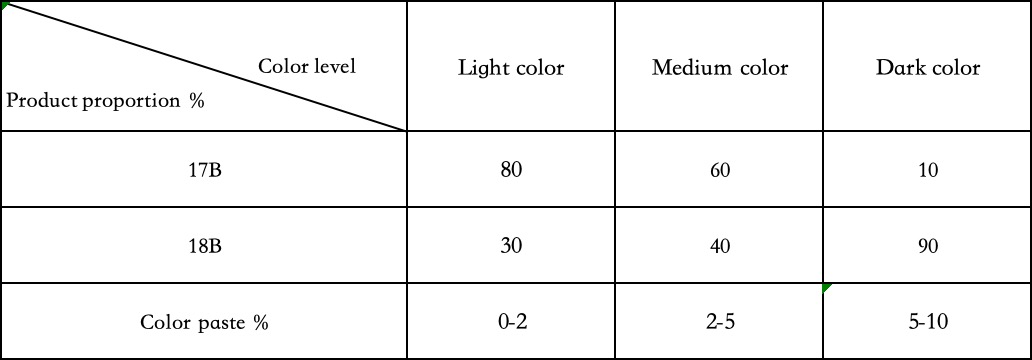

2. Application Ratio
Note:
1.It is recommended to use the high temperature migration resistant color paste.
2.The total amount of color paste is recommended not to exceed 10%, otherwise it w ill fade or migrate.
3. Printing Process
3.1 Printing condition
A. It is recommended to operate under 40% to 70%humidity conditions,and pay attention to the effect of temperature on operability.When the humiditshuy is higher than 70%,the heating time shall be appropriately extended to avoid the surface becoming sticky and the washing fastness becoming poor;when the humidity is lower than 40%,1-2%moisturizer shall be added to prevent the screen from blocking.
B. Squeegee:55-65 hardness oily squeegee
C. Mesh:100-120 mesh
D. Curing conditions:130-135℃ for 2 minutes,or natural drying for 2-3 days.
4.Performance Of Printed Products
| Test Project | 17B | 18B | Test Method |
| Flexibility | Level 4 | Level 4 | Internal standard:Level 5 very soft |
| Elasticity | Level 3 | Level 3 | Internal standard:Level 5 very soft |
| Whiteness | Level 3-4 | _ | Internal standard:Level5 the best |
| Covering property | Level 3-4 | _ | Internal standard:Level5 the best |
| Machine wash fastness | Pass | Pass | 40℃Water temperature,20g of phosphatefiree laundry detergent,1000 rpm,standard wash for 90es*5 times |
| Resistant to dry rubbing color fastness | _ | Level 3-4 | Friction for 20 cycles |
| Moisture resistant rubbing color fastness | _ | Level 3-4 | Friction for 20 cycles |
5.Frequently Asked Questions
| Problem | Possible Cause | Solution |
| The flame retardant effects not good | The fabric itselflacks flame retardant properties | Ensure that flame retardant fabrics are usedin combination with the flame retardant paste |
